SCCM 2007 WMI Repair Issues

I have seen a lot of Young SCCM admins actually finding it hard to keep the health of their SCCM 2007 clients as healthy. I found this article published by a SCCM expert and wanted to share it with you guys



Here is Batch script that check the functionality of wmi using simple wmic command:

wmic computersystem get name

if the the above command gives any output,script exit else repair it.

Here is the complete Batch script :

REM Check if WMI is functioning correctly or not

REM Get computername from WMI

wmic computersystem get name

IF %ERRORLEVEL% EQU 0 goto success

:failure

net stop ccmexec /y

net stop VMAuthdService /y

net stop winmgmt /y

c:

cd %systemroot%\system32\wbem

rd /S /Q repository

regsvr32 /s %systemroot%\system32\scecli.dll

regsvr32 /s %systemroot%\system32\userenv.dll

mofcomp cimwin32.mof

mofcomp cimwin32.mfl

mofcomp rsop.mof

mofcomp rsop.mfl

for /f %%s in (‘dir /b /s *.dll’) do regsvr32 /s %%s

for /f %%s in (‘dir /b *.mof’) do mofcomp %%s

for /f %%s in (‘dir /b *.mfl’) do mofcomp %%s

net start winmgmt

net start VMAuthdService

net start ccmexec

goto end

:success

goto end

:end

Some theory about WMI and how to check if it is working or not.

What is WMI (windows management Instrumentation)?

Windows Management Instrumentation (WMI) is the infrastructure for management data and operations on Windows-based operating systems

WMI can be used in all Windows-based applications, and is most useful in enterprise applications and administrative scripts

For example, you can:

· Start a process on a remote computer.

· Schedule a process to run at specific times on specific days.

· Reboot a computer remotely.

· Get a list of applications installed on a local or remote computer.

· Query the Windows event logs on a local or remote computer.

How to connect to WMI (local or remote computer):

Type wbemtest from Run command

Click on Connect

The Default Name space is root\cimV2 .You have many namespaces available in WMI.

Click on Connect

Click on Enum Classes

Select Recursive

You can see lot of classes available for cimV2 name space. For more information about available classes in WMI namespace called cimV2 ,please look at here http://msdn.microsoft.com/en-us/library/windows/desktop/aa394084(v=vs.85).aspx with its description and objects within it.

Now you can see all the classes available within cimV2 name space.

To know more about what each class contains and its objects with in it

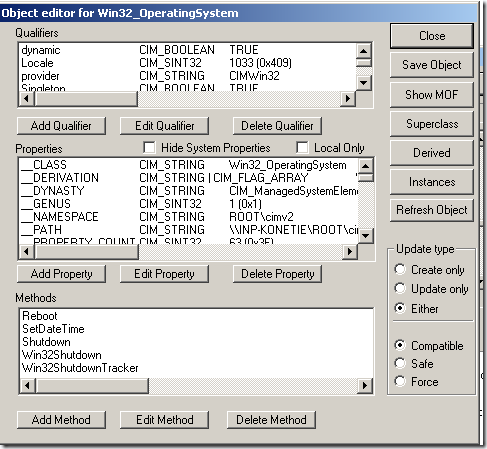

Double click on any class which you want to look at it and click on name which you desire

Now we will see how to execute to get required information with in WMI:

Go back to namespace called cimV2 shown below :

Click on Query:

Click on apply to see the results. You can execute any query which has correct syntax to get the correct information.

How do you run wbemtest on remote computer?

1. To connect remotely using tools like CIM Studio or Wbemtest, you must specify a namespace in the form “\\<machinename>\root\<namespace>”
For example: \\mymachine\root\cimv2 as shown below and perform the steps whatever you need as did above.

2.

How do you check remotely if WMI is working well or not ?

You do it via wbemtest or wmimgmt.msc from run command



See the error above. The RPC server is unavailable means something wrong with the computer could be machine doesn’t not exist on the network or name resolution or permission issue etc

If computer is connect successfully and if you look at properties of the computer ,you will see the below screen,
